Electrical systems often require secure connections between multiple conductors and power distribution equipment. Multi-Wire Lugs are engineered to simplify these connections by allowing several wires to terminate in a single lug body while maintaining strong conductivity and mechanical stability. This article explains how Multi-Wire Lugs work, why they are widely used in modern electrical installations, and how selecting the correct design can solve common installation and maintenance challenges. It also discusses the technical features, application environments, installation considerations, and performance advantages of Multi-Wire Lugs.

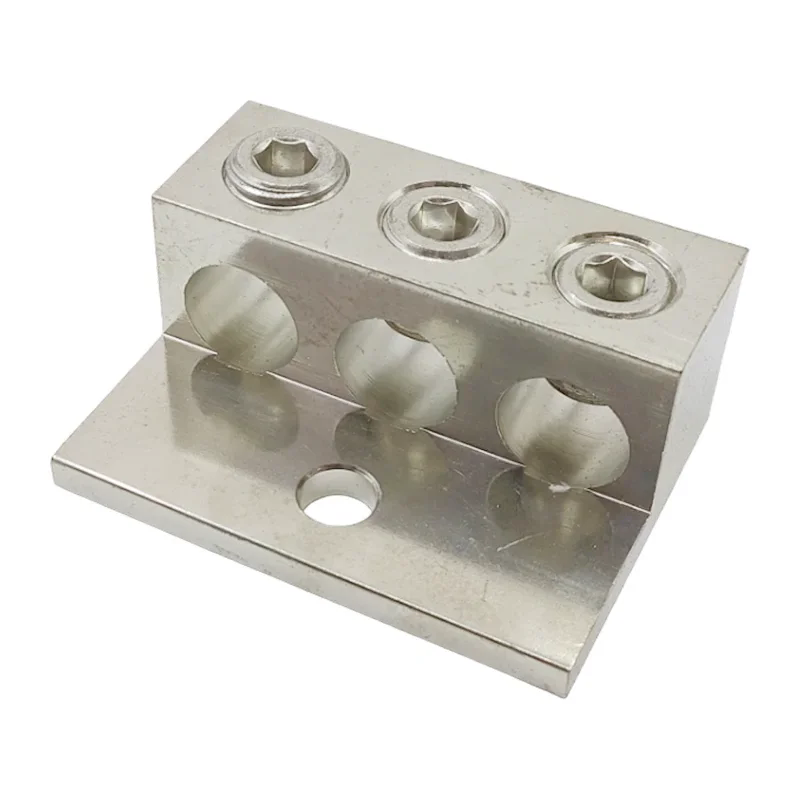

Multi-Wire Lugs are specialized electrical connectors designed to terminate multiple conductors into a single mechanical lug body. Unlike standard lugs that accommodate only one conductor, these connectors feature multiple wire entry points, allowing installers to organize and secure several cables at once.
This design is particularly useful in electrical panels, grounding systems, and distribution blocks where multiple circuits must connect to a common bus or terminal. By reducing the need for multiple connectors, Multi-Wire Lugs simplify installation, improve cable management, and reduce the risk of loose connections.
Manufacturers such as CMKS Electronic produce high-quality Multi-Wire Lugs engineered for durability, reliable conductivity, and long-term performance in demanding electrical environments.
Many electrical installations encounter recurring connection issues when multiple wires must terminate at a single point. These problems can affect system reliability and increase maintenance costs.
Multi-Wire Lugs address these challenges by providing a structured solution that consolidates multiple connections while maintaining strong mechanical clamping force and stable conductivity.
Modern Multi-Wire Lugs are designed with advanced materials and structural features to ensure reliable electrical performance.
These features help ensure that electrical connections remain stable under mechanical stress, temperature changes, and long-term operational conditions.
Using Multi-Wire Lugs offers several operational and technical advantages for electrical installations.
In large-scale industrial projects, these benefits can significantly streamline installation processes and improve the overall efficiency of electrical infrastructure.
Choosing the correct Multi-Wire Lugs requires careful consideration of several technical factors.
Working with experienced suppliers such as CMKS Electronic ensures that the selected connector meets the required electrical standards and mechanical performance requirements.
| Parameter | Specification Example |
|---|---|
| Material | Aluminum Alloy or Copper |
| Number of Wire Ports | 2 to 8 Conductors |
| Wire Size Range | 14 AWG – 500 kcmil |
| Surface Treatment | Tin Plated or Anti-Oxidation Coating |
| Mounting Method | Bolt or Screw Compression |
| Operating Temperature | -40°C to 120°C |
Multi-Wire Lugs are widely used in various electrical and industrial sectors where multiple conductors need to be securely terminated.
These connectors help maintain stable electrical performance even in high-demand environments with complex wiring configurations.
Proper installation is essential for ensuring the long-term performance of Multi-Wire Lugs.
Following these practices helps prevent overheating, loose connections, and electrical resistance issues.
What are Multi-Wire Lugs used for?
They are used to connect multiple conductors to a single electrical terminal, simplifying wiring in distribution systems.
Are Multi-Wire Lugs suitable for high-current applications?
Yes, when properly selected based on conductor size and material, they can support high-current electrical systems.
What materials are commonly used in Multi-Wire Lugs?
Most are made from high-conductivity aluminum or copper alloys with protective surface coatings.
How can connection reliability be ensured?
Proper torque installation, correct conductor sizing, and quality connectors from reliable manufacturers are essential.
Multi-Wire Lugs play a vital role in modern electrical systems by providing secure and efficient termination for multiple conductors. Their ability to simplify wiring, improve electrical reliability, and reduce installation complexity makes them a preferred solution for engineers and installers across many industries.
CMKS Electronic focuses on manufacturing dependable Multi-Wire Lugs designed to meet demanding electrical requirements and long-term operational reliability. If you are looking for high-quality electrical connectors that improve installation efficiency and system performance, contact us today to learn how CMKS Electronic can support your project requirements.
