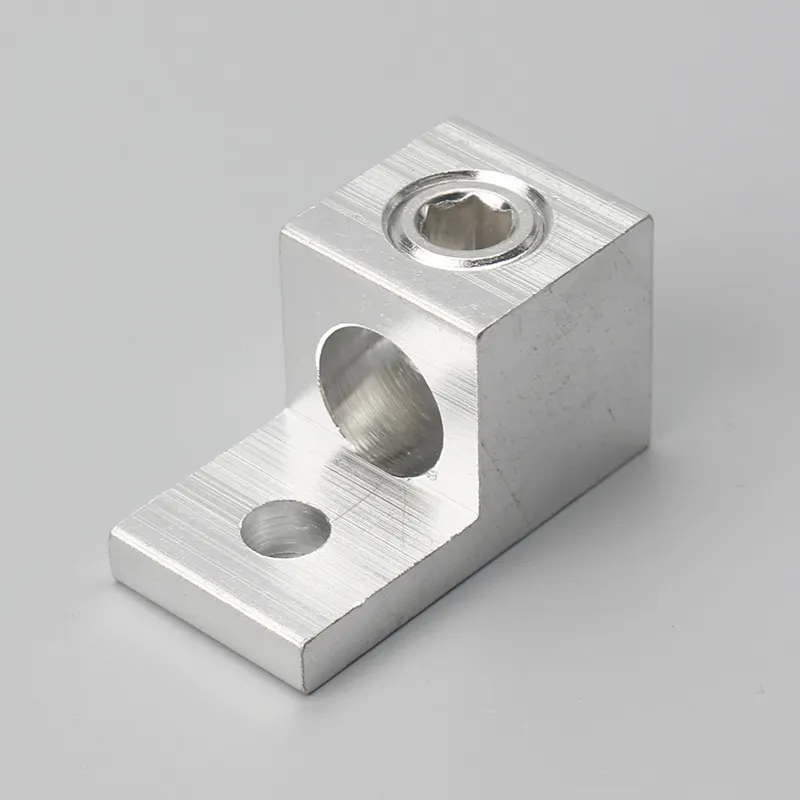

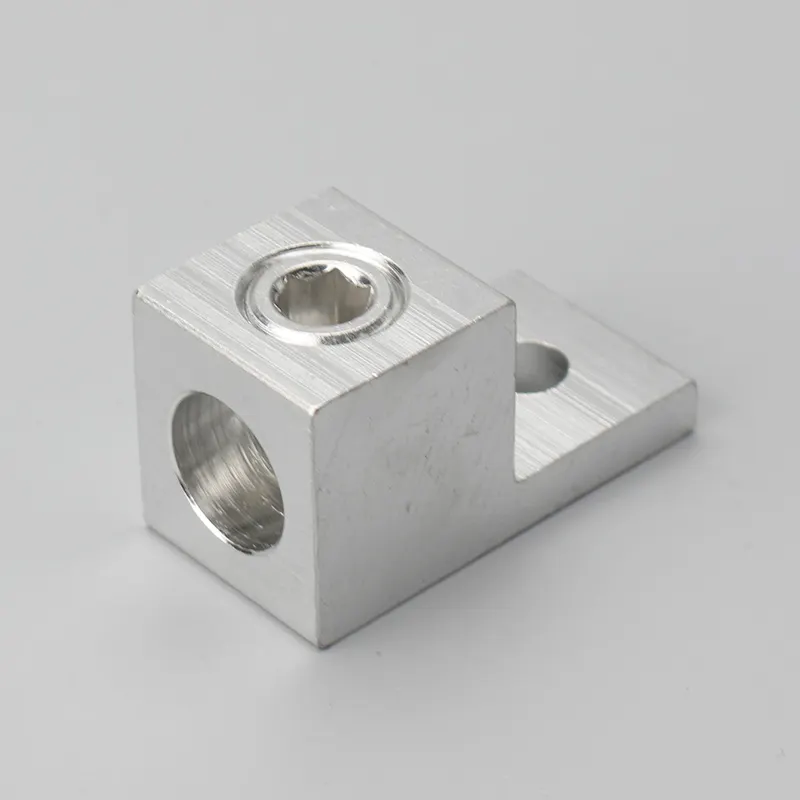

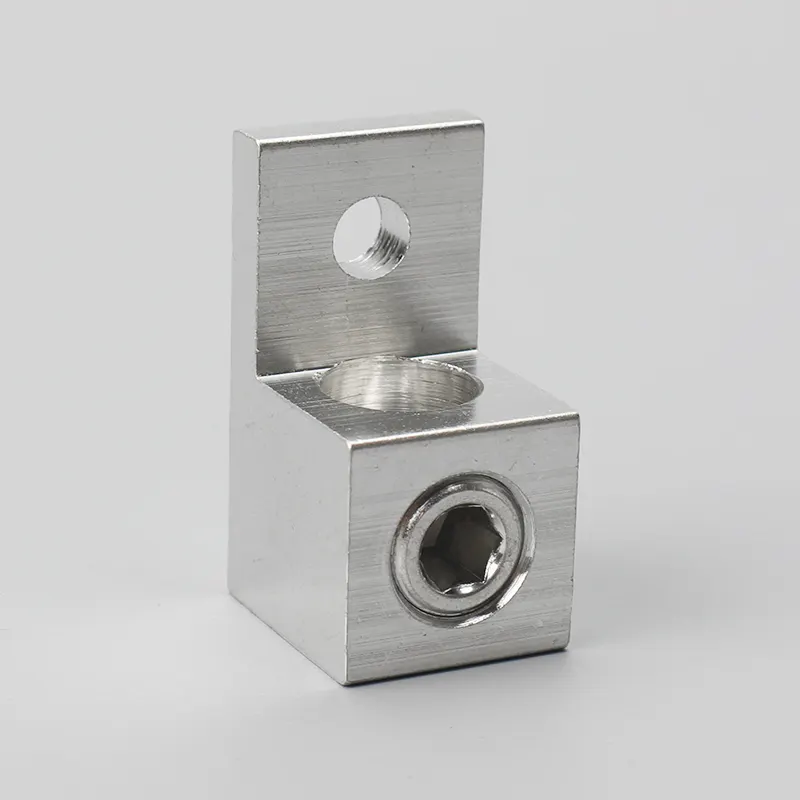

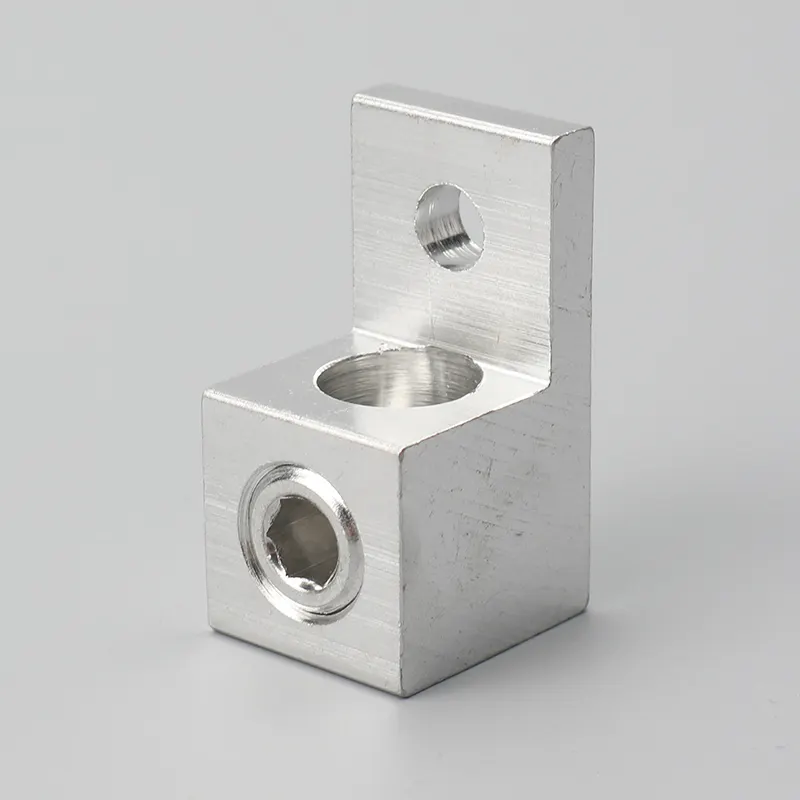

I think when you are a professional in single wire connectors, you may need a Kangshuai 250 MCM-6 Single Wire Lugs that is compatible with copper and aluminum conductors, while maintaining long term stability and low resistance. This set screw terminal block is made of 6061-T6 aluminum alloy and has undergone electroplating tin treatment, with good conductivity, easy installation, and corrosion resistant surface.
Conductor size range: 6 AWG to 250 kcmil
Conductor type: Copper or Aluminum (CU9AL)
Main material: High strength 6061-T6 aluminum alloy
Coating: Electroplated tin, with excellent corrosion resistance and low contact resistance
Length: 2 inches (total length)
Wire entrance: chamfered entrance, convenient for wire insertion
Installation hole: compatible with standard fastening hardware
Certification: UL 467/UL 486A/B certification, CSA certification
Rated temperature: 90 ° C
Wire capacity: 1 wire
Dual rating (CU/AL): suitable for copper and aluminum wires
Reusable fixed screw design: can be quickly installed and replaced without causing damage
The coating of 250 MCM-6 Single Wire Lugs can reduce resistance and heat accumulation
Aluminum alloy structure provides balance, durability, and lighter weight
250 MCM-6 Single Wire Lugs certified by UL and CSA, suitable for various electrical environments
Power Distribution Cabinet
Public utility level connectivity
Electrical control cabinet
Renewable energy devices
Mechanical and HVAC systems
Building and industrial electrical systems
Wenzhou Kangshuai Electronics Co., Ltd. is located in Yueqing City, Zhejiang Province, China's Electrical Innovation Center. It is a high tech enterprise that integrates the research and development, production, and sales of mechanical wiring terminals, wiring terminals, bus ducts, and grounding accessories.
With over ten years of professional experience, Kangshuai has won the trust of the global market with consistent quality, professional technology, and flexible service models.
Company Highlights and Global Advantages
Certification: ISO9001, compliant with ROHS standards, UL certification
Complete set of CNC machining production lines, automated cutting, stamping, milling, and testing equipment
We support OEM/ODM production based on customer samples or specifications
Global coverage:
South America -32%
North America -24%
Southeast Asia -18%
Europe -12%
East Asia and the Middle East -6% each
Oceania -2%
After sales guarantee: Free replacement of quality defective products and comprehensive fault analysis provided
Customer first philosophy: fast response, reliable delivery, long-term cooperation
Looking for a reliable power connection?
The 250 MCM-6 Single Wire Lugs is not just a connector, but also a guarantee of efficient and long lasting electrical performance for you. Whether it is industrial, commercial or utility applications, Kangshuai's components can help the industry progress and are trustworthy.
