How Do Double Wire Lugs Improve Electrical Connections?

Summary: Double wire lugs are essential components in electrical systems, providing reliable and secure connections for multiple wires. This article explains how double wire lugs work, their benefits, installation methods, material options, and troubleshooting tips to help businesses and technicians ensure safe and efficient wiring solutions.

Table of Contents

• What Are Double Wire Lugs?
• Advantages of Using Double Wire Lugs
• Materials and Types
• Installation Guide
• Common Issues and Solutions
• FAQ

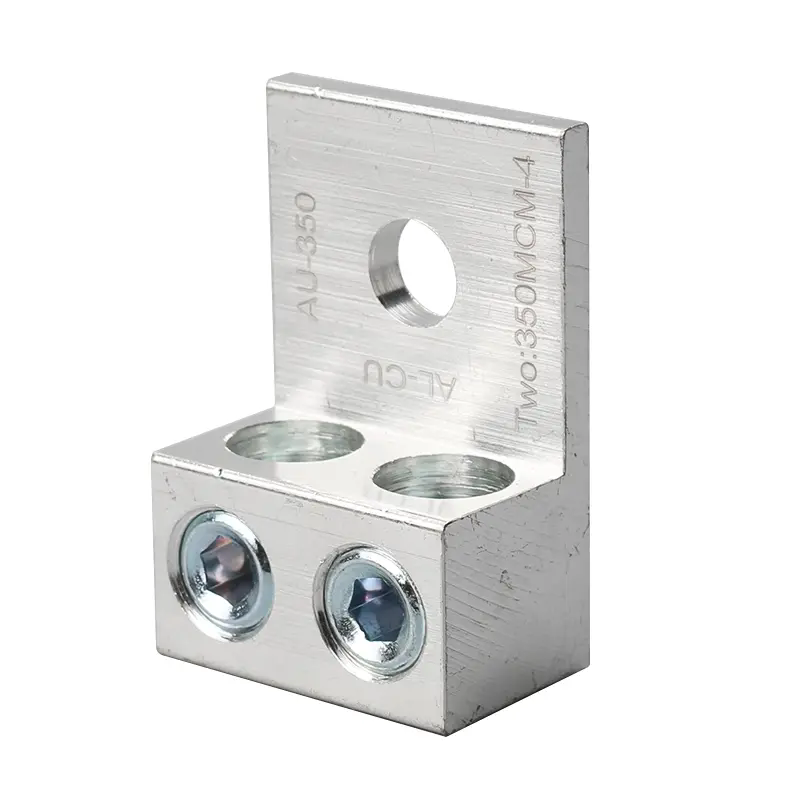

What Are Double Wire Lugs?

Double wire lugs are electrical connectors designed to join two separate wires into a single terminal point. They ensure a stable electrical connection while minimizing the risk of loose connections, overheating, or electrical failures. These lugs are widely used in industrial, automotive, and commercial electrical applications where reliability and safety are critical.

Typically, double wire lugs feature:

• Two wire entry points for simultaneous connection
• High conductivity materials such as copper or aluminum
• Corrosion-resistant coatings to enhance durability

Advantages of Using Double Wire Lugs

Double wire lugs provide several significant benefits for electrical systems:

• Enhanced Safety: Reduces the risk of loose connections and electrical fires.
• Time Efficiency: Simplifies wiring by connecting two wires in one terminal, reducing installation time.
• Cost-Effective: Lowers labor costs and reduces the need for additional terminals.
• Durability: Corrosion-resistant materials ensure a long-lasting and stable connection.

Materials and Types

Double wire lugs come in various materials and configurations depending on the application:

Installation Guide

Proper installation of double wire lugs is essential for performance and safety. Follow these steps:

1. Strip the Wires: Remove the insulation from the wires to expose the conductive core.
2. Insert the Wires: Slide the stripped wires into each entry point of the double wire lug.
3. Tighten the Lug: Use a crimping tool or appropriate fastener to secure the wires firmly.
4. Inspect the Connection: Ensure there is no loose wire and the lug is seated correctly.

Tip: Always use lugs rated for the wire gauge and electrical load to prevent overheating and potential hazards.

Common Issues and Solutions

Even with quality double wire lugs, issues may arise. Here are the most common problems and solutions:

• Loose Connections: Ensure proper crimping technique and verify torque specifications.
• Corrosion: Use tinned or coated lugs in high-humidity or outdoor environments.
• Overheating: Check wire gauge compatibility and avoid overloading the circuit.
• Mechanical Stress: Support wires to reduce strain on the lug.

FAQ

Q1: Can I use double wire lugs for different wire sizes?
A1: Yes, but always check the lug specifications. Using mismatched sizes may compromise the connection.

Q2: Are double wire lugs reusable?
A2: Typically, they are designed for single-use crimping. Reusing may reduce reliability.

Q3: What environments are double wire lugs suitable for?
A3: They work in industrial, automotive, and outdoor settings, especially if corrosion-resistant materials are used.
