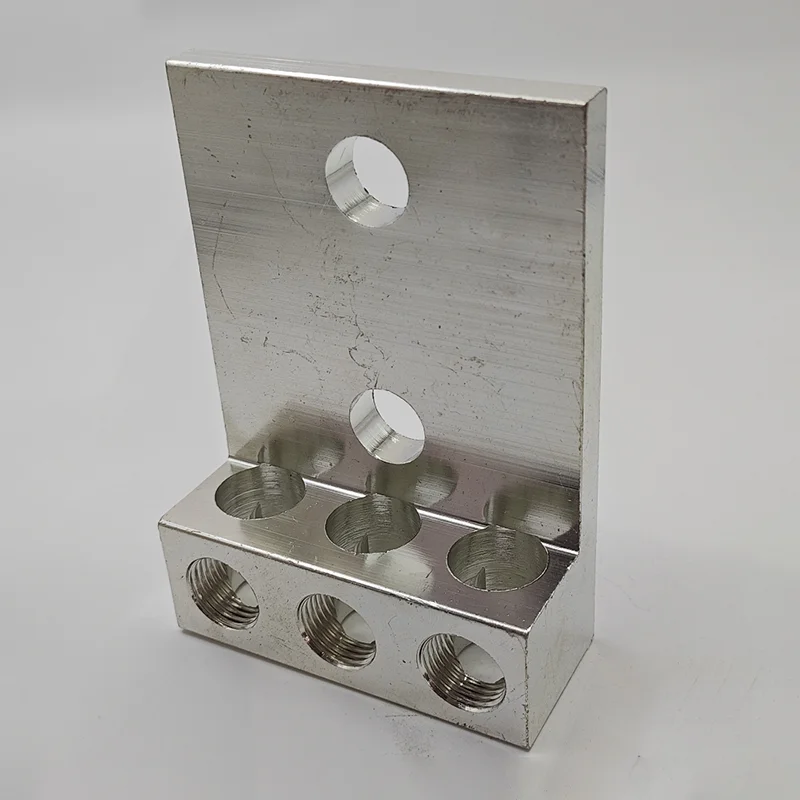

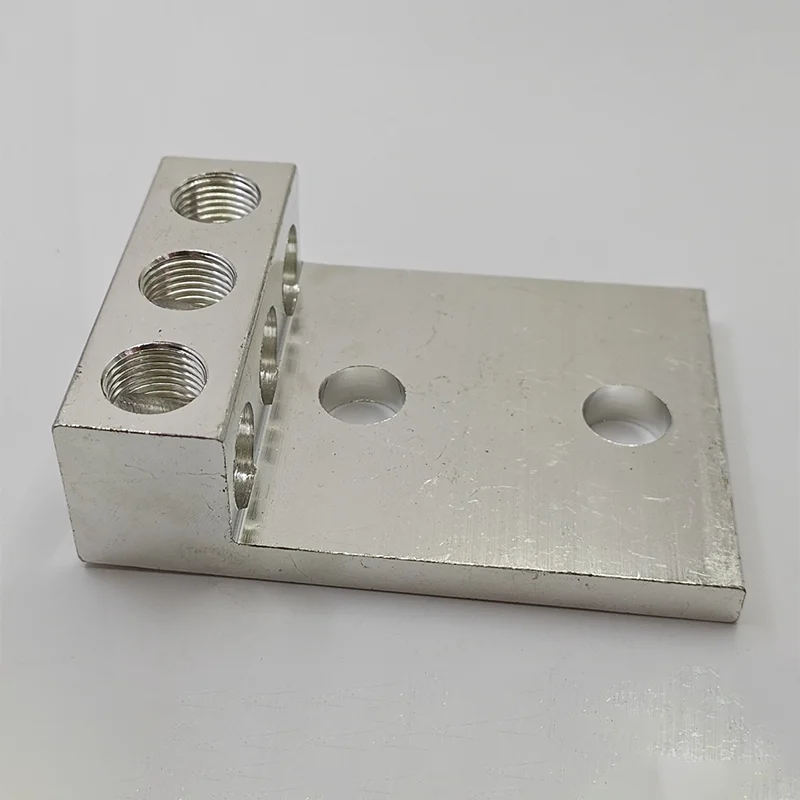

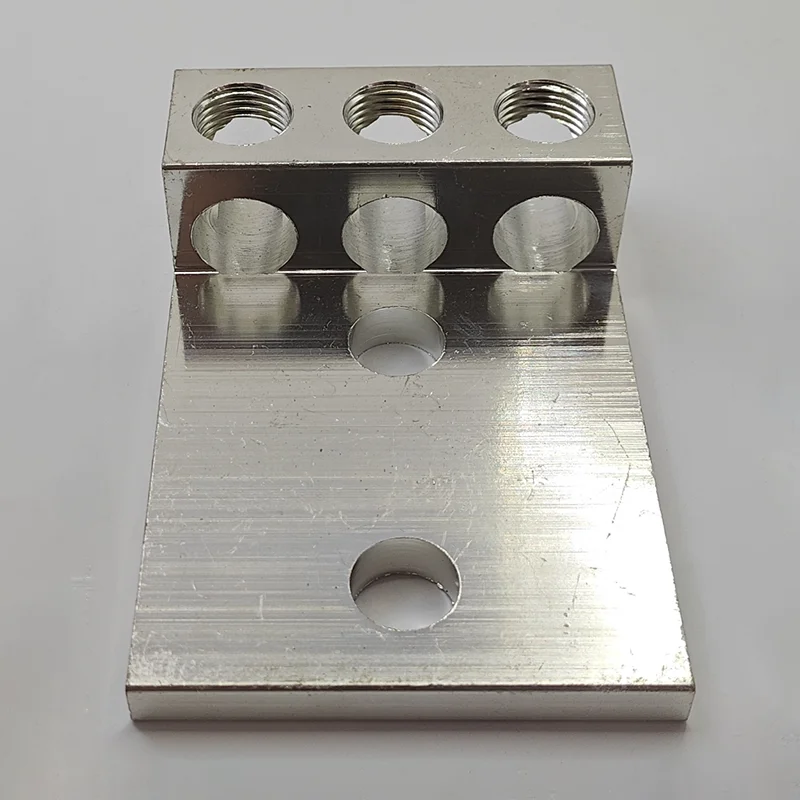

This 600 MCM-2 Triple Wire Lugs with Multi Mounting Holes is designed to accommodate three core wires ranging from 600 MCM to # 2 AWG, and supports both aluminum and copper cables. The 6061-T6 aluminum alloy body has structural integrity, while the electroplated tin layer has low resistance current transmission and corrosion resistance. Whether you are terminating feeder cables or separating power lines in a small space, this terminal block can provide the sturdy, durable, and adaptable performance your system needs.
Specification details
Conductor range: 600 MCM - # 2 AWG × 3 conductors
Material: 6061-T6 aluminum alloy
Coating: Electroplated Tin
Design: Three line entrance, mechanical fixing screws
Installation hole: Multiple installation options (standard NEMA hole type)
Compatibility: Copper aluminum dual rated (CU9AL)
Rated voltage: 600V
Rated temperature: 90 ° C
Certification: UL 486A/B, CSA, RoHS compliant, ISO 9001 certification
600 MCM-2 Triple Wire Lugs with Multi Mounting Holes suitable for branch heavy-duty cables
Flexible bolt mode, suitable for various installations
This product can be inserted smoothly and has the best wire contact
600 MCM-2 Triple Wire Lugs with Multi Mounting Holes detachable fixing screws for easy repositioning
Tin plated surface can prevent corrosion, oxidation, and improve conductivity
Kangshuai simplifies installation in control panels or busbar systems
Public facilities and distribution cabinets
Industrial distribution panel and busbar
Backup power supply and renewable energy system
mcc
OEM Electrical Components
Wenzhou Kangshuai Electronics Co., Ltd. is located in Yueqing City, Zhejiang Province. It is a nationally recognized high-tech enterprise specializing in the research and development, production, and export of mechanical connectors, crimping terminals, and wire harness connectors.
Our factory is equipped with advanced CNC machining centers, precision testing instruments, and a comprehensive quality management system certified by ISO 9001. All 600 MCM-2 Triple Wire Lugs with Multi Mounting Holes comply with UL and CSA standards and are exported to Europe, North America, Southeast Asia, the Middle East, and other regions.
Single wire, double wire, and three wire connectors, covering specifications from 14 AWG to 1000 MCM.
Durable under high torque, with neat wire entry and smooth surface.
Kangshuai serves industries such as electrical, telecommunications, construction, and automotive.
