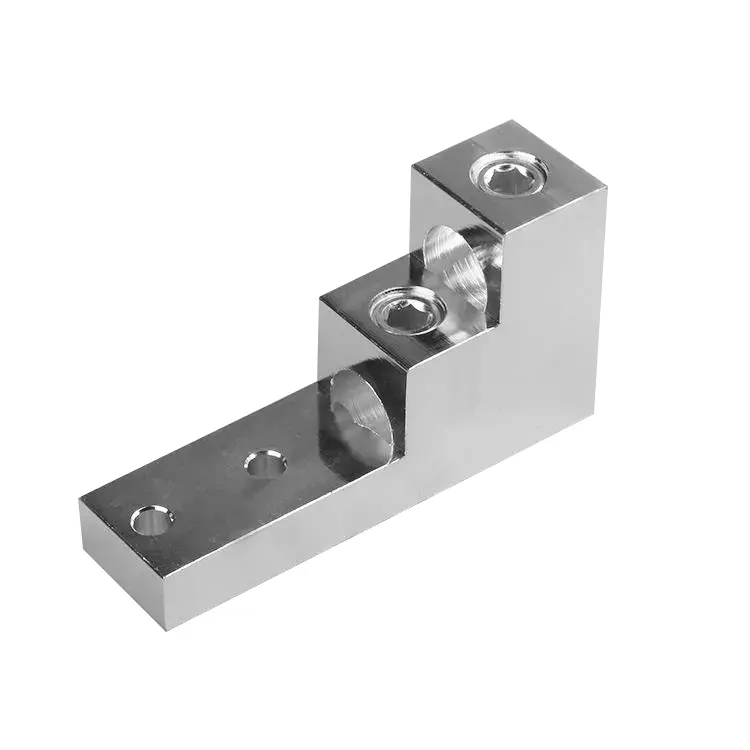

As a Chinese manufacturer and factory with over a decade of experience in the electrical connectivity field, CMKS Electronic specializes in the research, development, and production of connector products such as mechanical lugs, box collar lugs, neutral bars, and panelboard lugs. Multi-Conductor Panelboard Lugs, with their excellent conductivity, wide compatibility, and customization capabilities, have established a reputation for high quality and value in the power, communications, automotive, and building electrical industries. They are the preferred Chinese supplier for buyers in major markets such as North America (24%) and South America (32%).
| Model | CMKS-MPL-01 | CMKS-MPL-02 | CMKS-MPL-03 | CMKS-MPL-Custom | ||||
| Material | T2 Copper (Tin-plated) | T2 Copper (Tin-plated) | H62 brass (nickel-plated) | Customized materials (copper / brass / Copper-Aluminum Composite) | ||||
| Rated Current Range | 100A - 300A | 300A - 600A | 600A - 1200A | 50A - 2000A | ||||
| Rated Voltage | 600V/1000V | 600V/1000V | 1000V/1500V | Customized (up to 3000V) | ||||
| Insulation Type | PVC Insulation | Silicone rubber insulation | Epoxy insulation | Customized (PVC / Silicone Rubber / PTFE) | ||||
| Connection Method | Screw Connection (M6-M8) | Bolt connection (M8-M10) | Bolt + solder connection | Customized (Bolt / Crimping / Welding) | ||||
| Applicable Wire Type | Stranded Copper / Aluminum Conductor | Stranded copper conductor / Aluminum conductor | Stranded copper conductor | Customized (Copper / Aluminum / Copper-Aluminum Hybrid) | ||||
| Wire Gauge Range (AWG) | 10 - 2 AWG | 2 - 4/0 AWG | 4/0 - 300 kcmil | Customized (22 AWG - 500 kcmil) | ||||
| Operating Temperature Range | -40°C - 125°C | -40°C to 150°C | -40°C to 180°C | Customized (-60°C to 200°C) | ||||
| Certification Standards | UL 486A/B, ROHS, ISO9001 | UL 486A/B, ROHS, ISO9001 | UL 486A/B, CE, ROHS | Customized (UL/CE/CSA, etc.) | ||||
| Weight (per piece) | 55g - 80g | 85g - 120g | 150g - 220g | Customized |
CMKS strictly controls quality throughout the entire process, from raw materials to production and testing, to eliminate problems such as poor conductivity and insulation damage:
Raw Material Selection: Only T2 copper and H62 brass that comply with GB/T 5231 standards are used. All insulation materials are ROHS certified and environmentally friendly. A material report is provided for each batch of raw materials.
Production Control: Fully automated production lines are used to minimize manual intervention.
Finished Product Inspection: Each batch of products must pass a "conductivity test" (current loss ≤ 0.5%), an "insulation test" (withstand voltage 1500V without breakdown), a "heat resistance test" (180°C for 2 hours without deformation), and a "vibration test" (simulating transportation and operating vibrations to ensure secure connections). Only qualified products are released.
From multi conductor panelboard lugs to mechanical lugs, box collar lugs, and neutral bars, CMKS Electronic remains customer-centric. Leveraging the cost advantages of a China factory, flexible customized services, and high-quality product assurance, we have become a stable supplier to many outstanding companies worldwide. If you need to purchase Multi-Conductor Panelboard Lugs or other electrical connection products, please contact CMKS Electronic through the following channels:
Official Website: www.mechanical-lug.com
Core Products: Multi-Conductor Panelboard Lugs, Mechanical Lugs, Box Collar Lugs, Neutral Bars
Brand: CMKS Electronic
Choose CMKS and choose cost-effective electrical connection solutions made in China, ensuring peace of mind and peace of mind when purchasing!
