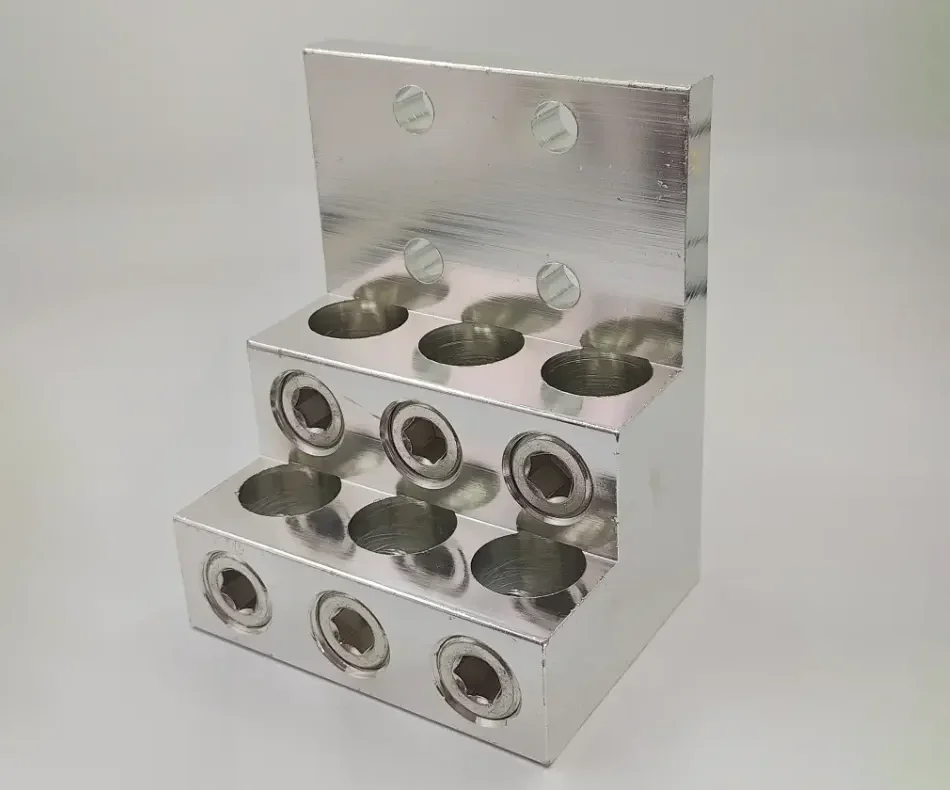

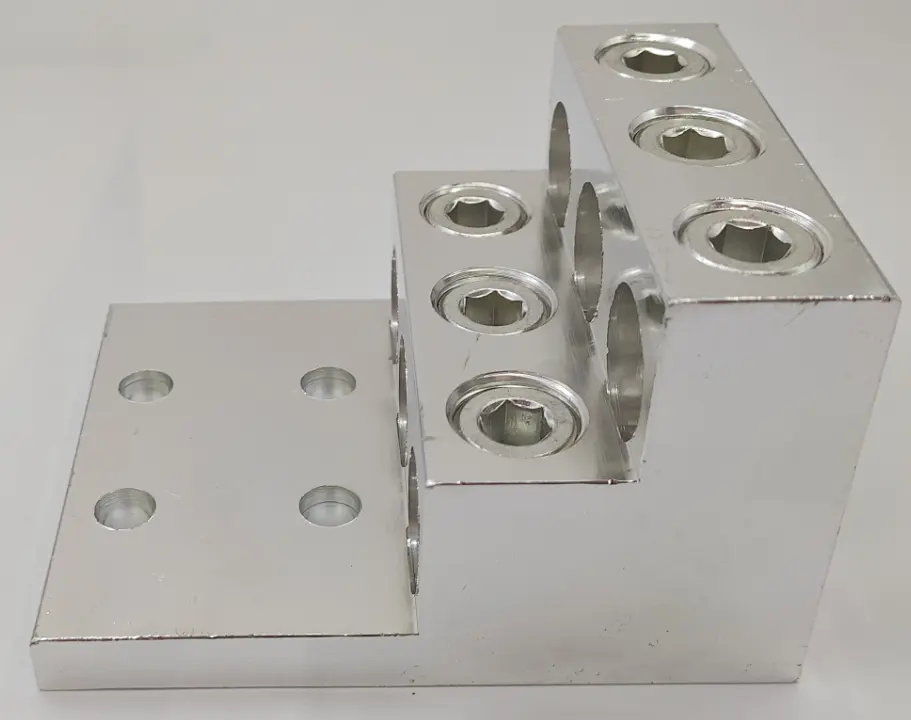

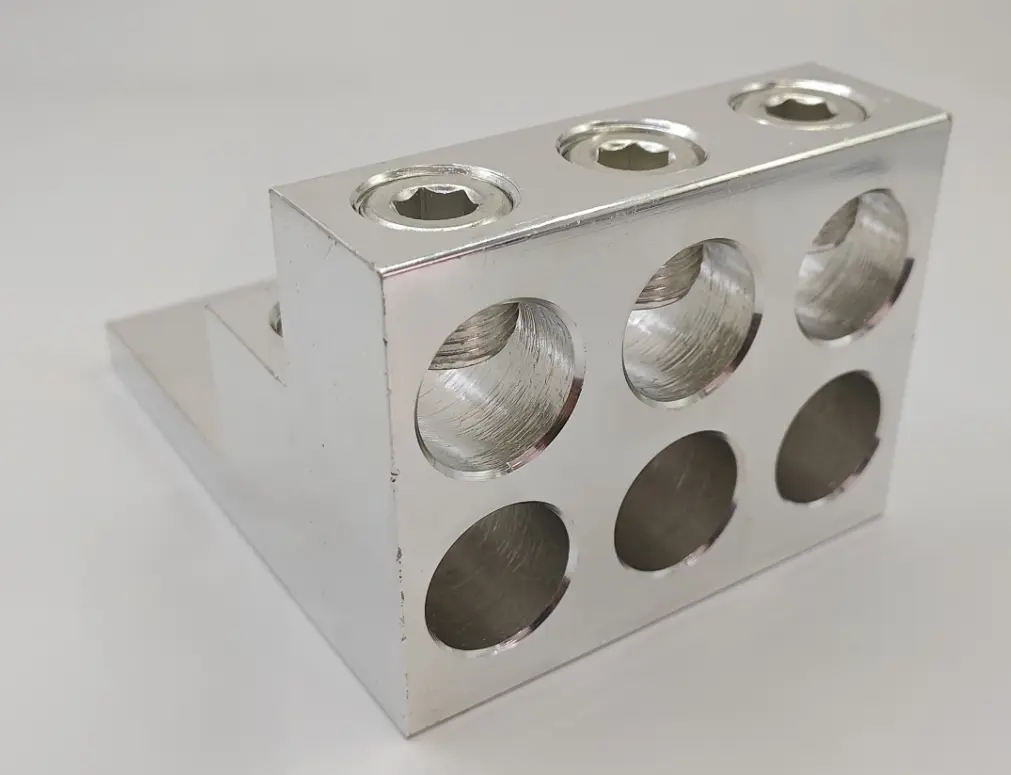

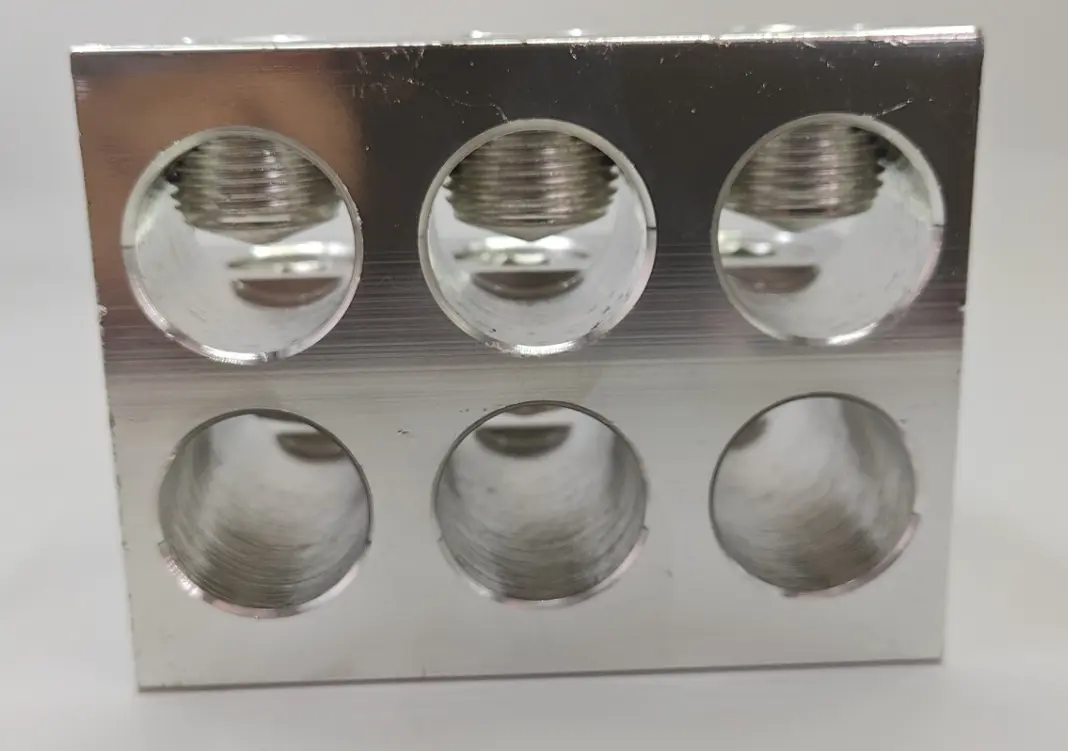

The convergence of six conductors is not a simple structural superposition, but rather an integrated test of connection logic, easy installation, thermal management capability, and long-term stability. 600 MCM-2 6 Conductor Panelboard Lugs have been designed with practical engineering applications in mind: tensile, anti loosening, heat-resistant, and easy to install. With it, you no longer need extra space to stack multiple single conductor terminals, nor do you have to worry about heating or poor contact caused by high load operation.
Its integrated molding and batch consistent die-casting manufacturing process ensures that each terminal has industrial grade reliability. Isn't that the kind of 'once and for all' solution you want?
Are you facing these challenges?
How can multiple high current conductors safely converge?
Is the distribution box space tight, with too many terminals and chaotic wiring?
Traditional wiring methods cannot meet the dual requirements of reliability and load-bearing capacity?
The original intention of designing the 600 MCM-2 6 Conductor Panelboard Lugs was to address these pain points. It combines the centralized connection of multiple conductors with structural reinforcement crimping to achieve efficient, safe, and stable distribution connections in a limited space.
Project parameter description
Maximum wire capacity 600 MCM (single hole) × 3
Supports conductor types copper (CU)/aluminum (AL)
Install bolt size # 2 bolt (double hole fixing)
Material: High strength aluminum alloy body
Surface treatment: Tin plating treatment, oxidation resistance
Working environment: high temperature, high humidity, high vibration industrial environment
Standard certification UL certification, SGS environmental compliance, compliant with RoHS directive
Application level industrial/commercial/building grade power supply and distribution system
Is the centralized connection of six conductors to an integrated terminal more space saving and conducive to wiring? The answer is obvious.
Would you be willing to increase losses due to increased resistance? Of course not! High purity aluminum alloy achieves ideal conductivity efficiency.
Are you still worried that the terminals will rust, oxidize, and affect contact after prolonged operation? Of course not. Tin plating provides long-lasting protection like new.
Are you worried about not matching the device interface? The No. 2 bolt hole is an industry standard, suitable for various electronic control systems without any obstacles.
Are you afraid of getting stuck, scraping, or not being able to insert six large cross-sectional wires at the same time? There is no need to worry about precision chamfering design.
Industrial automation distribution system
Data center power combiner module
Multi circuit bus interface for urban buildings
High speed railway/rail transit distribution cabinet
Main port of energy storage and electric vehicle charging station equipment
Photovoltaic power station centralized inverter output and connection scenario
Wenzhou Kangshuai Electronic Co., Ltd.
Wenzhou Kangshuai Electronics Co., Ltd. has been deeply engaged in the electrical connection industry for more than ten years, and has developed into a high-tech enterprise integrating research and development design, precision manufacturing, and brand export. We not only provide terminal products, but also offer customers a complete set of solutions.
Core advantages:
Complete qualifications: ISO9001 international quality system certification, UL certification, SGS testing report obtained
Mature export: Our products are exported to over 30 countries and regions including Europe, America, Southeast Asia, the Middle East, and South America
Professional team: Engineering and technical personnel account for over 30%, and can customize production according to drawings
Strong supporting capability: one-stop supply of cold pressed terminals, terminal blocks, grounding components, and insulation components
Excellent after-sales service: technical selection guidance+user training+remote video assembly support
We always adhere to:
The development philosophy of "leading technology, honest management, quality first, customer first",
Provide safe, reliable, applicable, and stable electrical connection products to global customers.
