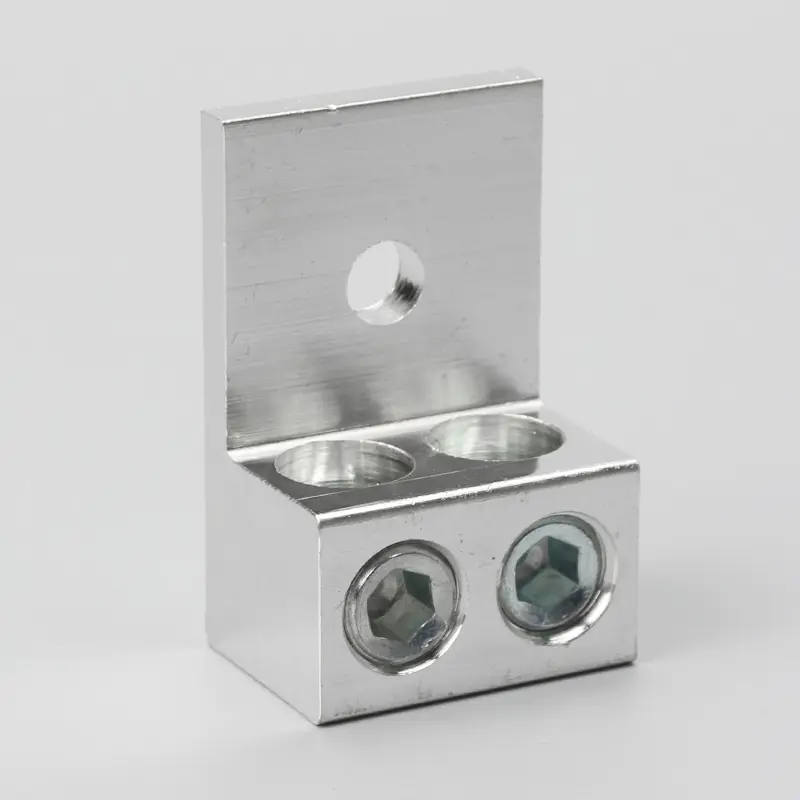

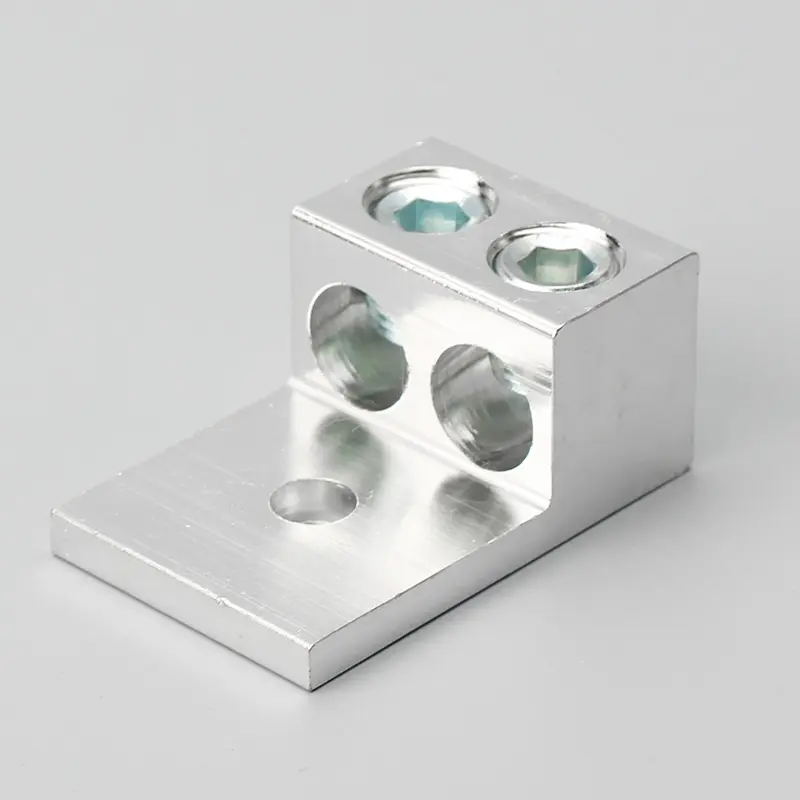

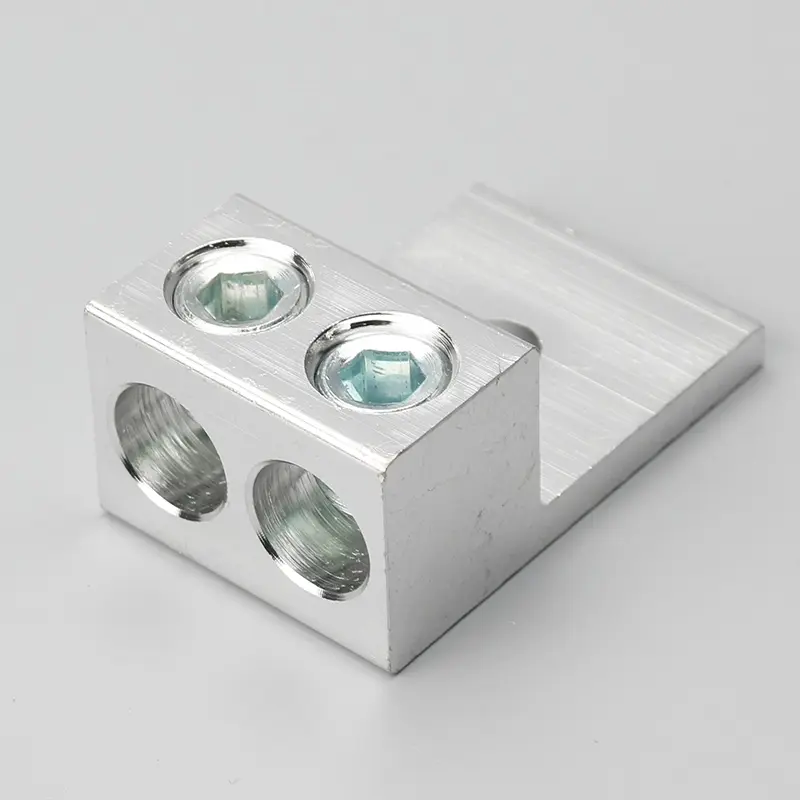

Kangshuai 250 MCM-6 Double Wire Lugs are made of high-quality 6061-T6 aluminum and have undergone electroplating tin treatment to ensure optimal conductivity and oxidation resistance. It is compatible with copper and aluminum wires and comes with fixing screws, providing a secure and reusable pressure connection. We specialize in customized manufacturing and can provide OEM/ODM services based on customer drawings, samples, or technical requirements. With advanced CNC machine tools, strict quality control system, and international certification, our products are exported to more than 30 countries/regions, including the United States, South America, Southeast Asia, the Middle East, and Europe.
250 MCM-6 Double Wire Lugs can accommodate wires ranging from 6 AWG to 250 MCM
Each terminal can accommodate two wires, with flexible configuration
Material: 6061-T6 aluminum body, tin plated for corrosion protection
Wire compatibility: Copper (CU) and Aluminum (AL), compliant with CU9AL standard
Installation hole: 1/4 inch bolt size
Rated voltage: up to 600V
Rated temperature: 90 ° C
Entrance type: chamfered opening, smooth insertion
Certification: UL 486A/B certification, CSA certification
Reusable fixing screws: high-strength torque ensures stable electrical contact
250 MCM-6 Double Wire Lugs can be used for distribution panels and boxes
Electrical control cabinet
Industrial motors and transformers
HVAC units and renewable energy systems
Heavy equipment wiring
Distribution panel, distribution board, and bus duct
250 MCM-6 Double Wire Lugs can maintain stable performance even in high load environments
Dual entrance design accelerates wiring speed within limited space
Universal installation: Standard 1/4 inch bolt holes are suitable for most bus ducts and terminals
Compliant with UL and CSA standards: Compliant with strict North American safety standards
Global standards: ISO9001, UL, CSA, RoHS, and SGS certifications
Customization capability: from prototype to production service
Comprehensive testing laboratory: conducting electrical, torque, and tensile tests internally
Convenient logistics: fast delivery and complete export documents
After sales service: 100% support for returns, exchanges, and root cause analysis
Customer centered philosophy: from quotation to installation support
Are you ready to collaborate with the manufacturer of 250 MCM-6 Double Wire Lugs?
Contact us immediately to obtain technical information, drawings, samples, or customized requirements.
Wenzhou Kangshuai - Creating lasting connections.
