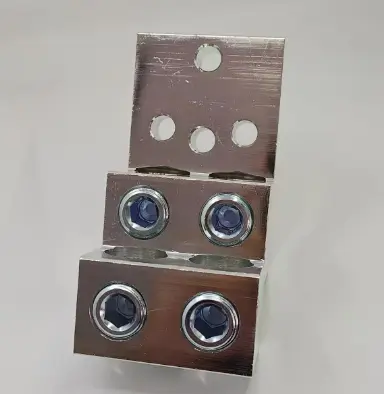

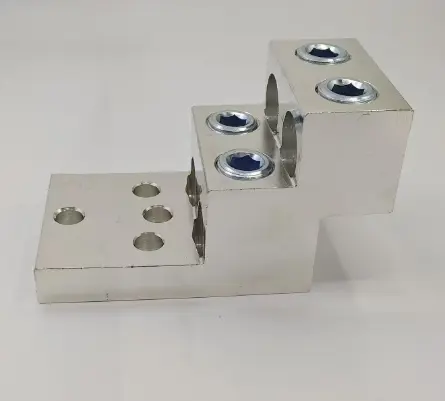

B type 600 MCM-2 4 Conductor Panelboard Lugs

Kangshuai B type 600 MCM-2 2 Conductor Panelboard Lugs is directly shipped from the Chinese manufacturing base. The product has a ceramic filled epoxy shell (UL 94 V-0), a short-circuit current of 65kA/0.5s, and does not melt. It supports DNV-GL/ABS classification society certification batch orders

B-type core advantage

Depth reduced by 40% compared to the standard model (only 28mm), suitable for Eaton/Siemens compact panel rear cavity

B type 600 MCM-2 4 Conductor Panelboard Lugs shared pressure plate technology ensures balanced potential between two wires and eliminates circulating current losses

Guide groove+phase color code (red/black/green) to prevent phase to phase misconnection

B-type exclusive application scenario

High density distribution cabinet: ship electrical panel, rail transit vehicle control box, modular data center

B type 600 MCM-2 4 Conductor Panelboard Lugs compatible panel: Eaton Memshield B type, Siemens Sivacon 8PS compact series

Install revolutionary design

Patent V-shaped pressure plate, synchronous crimping double wire

B type 600 MCM-2 4 Conductor Panelboard Lugs integrated voltage detection hole (3mm anti touch finger protection)

Copper aluminum composite transition sheet eliminates creep risk of dissimilar metals

Certification and Compliance

Safety certification: UL 486B Class B/IEC 60947-7-1

Environmental standards: RoHS 3/REACH SVHC

Industry standards: NFPA 70 (NEC 2023)/IEEE 837

Engineering Support Services

Free provision of 3D models (STEP/IPE) and panel opening templates

On site installation guidance video (scan code to watch)

Customized laser etching project number/safety warning label

Why choose Kangshuai?

Save 60% panel area compared to traditional dual terminal

50 year conductivity guarantee (signed performance agreement)

48 hour emergency spare parts service (including customs compliance documents)
