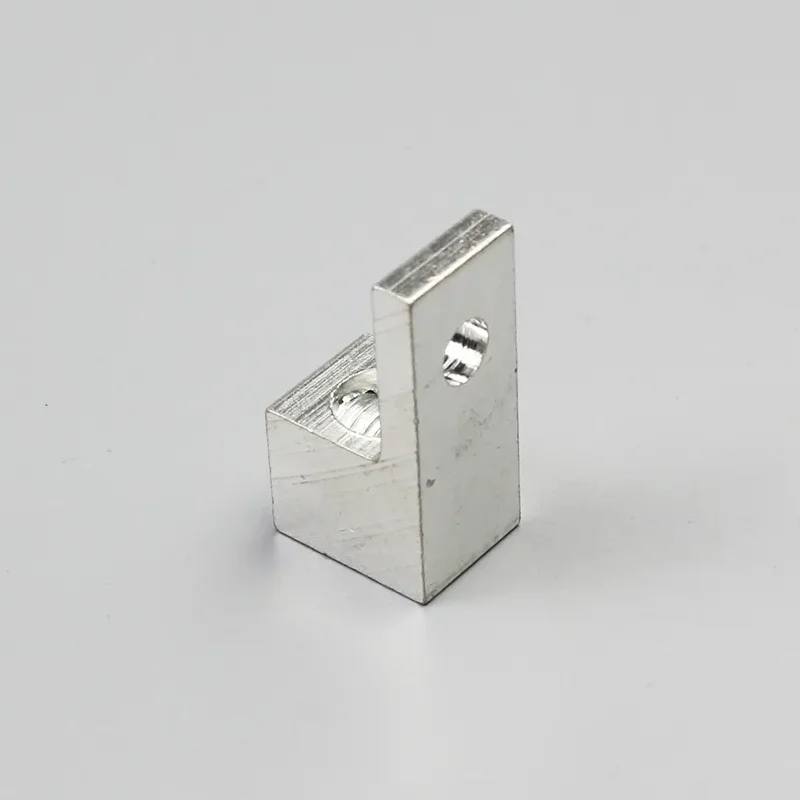

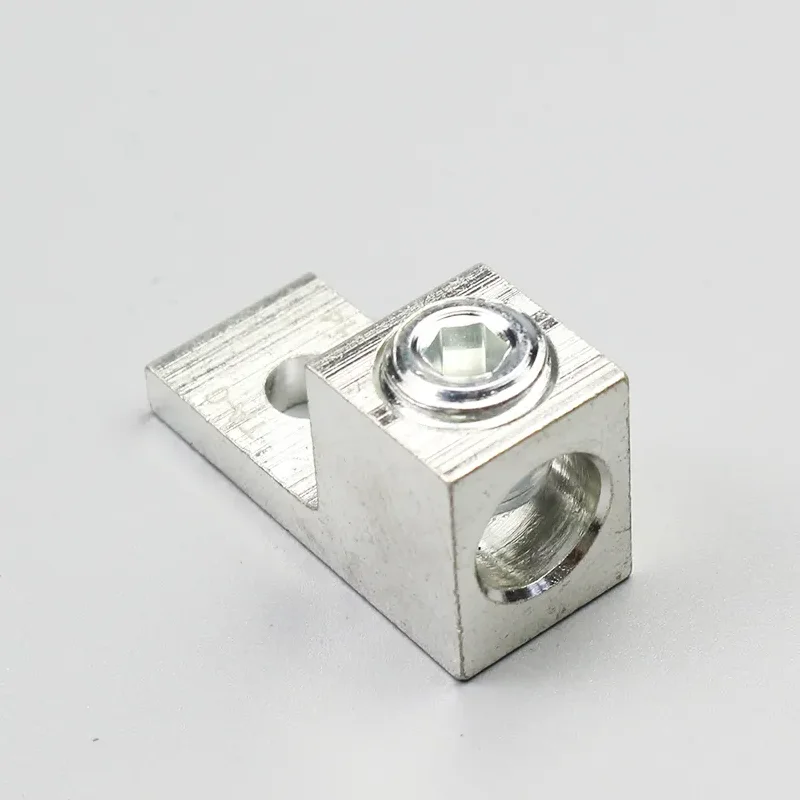

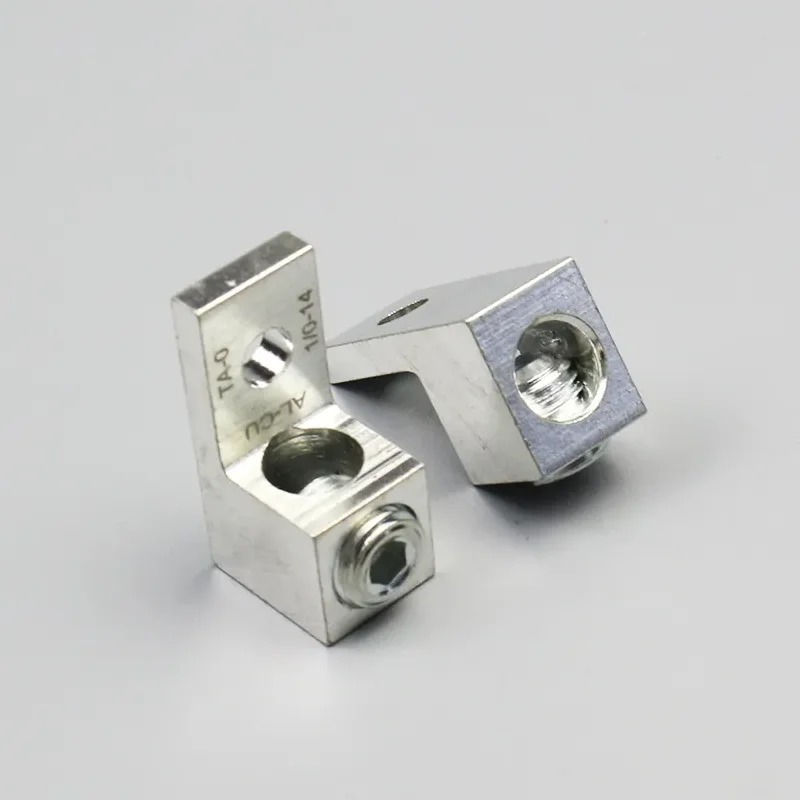

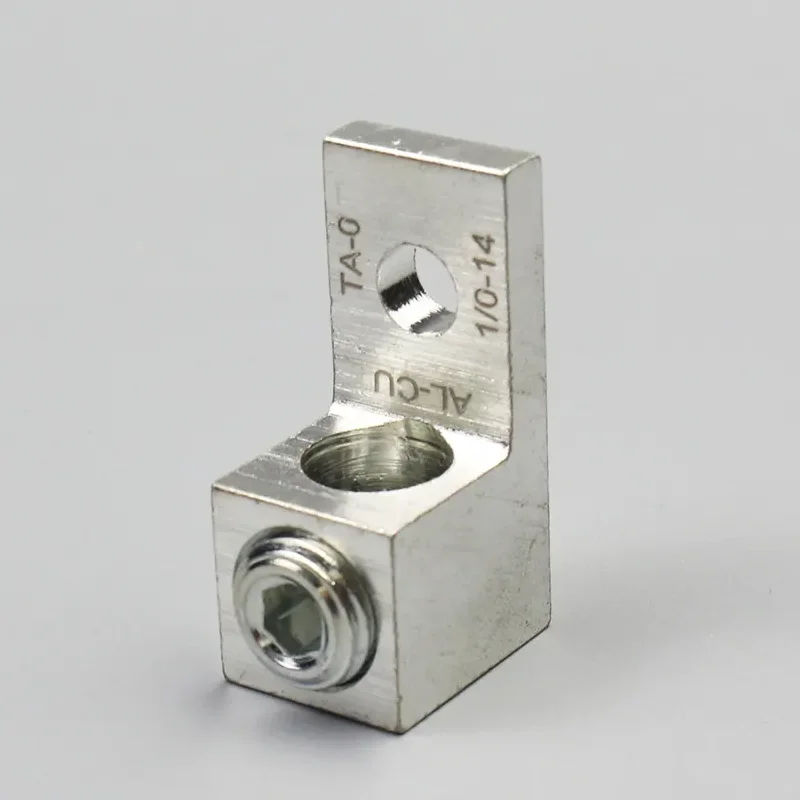

Choose Wenzhou Kangshuai to obtain safe, durable, and globally trusted 1/0-14 AWG Single Wire Lugs. This product adopts an internal hexagonal screw design, and some models (such as S1/0-TP-HEX) provide torque control and anti slip performance. For transformer applications, CU9AL dual rated terminals can be considered, and tin plated 6061-T6 aluminum can be used instead of bronze to improve conductivity and reduce material weight without affecting performance. Please contact us for technical specifications, samples, or customized configurations based on your project requirements.
Compatible with 1/0 AWG to 14 AWG copper wires
Main material: extruded high conductivity copper (≥ 99.9%)
Installation method: Single 1/4 inch bolt hole with anti rotation design (optional for some models)
Tin plated steel screws are firmly connected and resistant to vibration
Rated voltage: Standard 600V, 2000V or up to 35KV (non insulated, depending on the application)
Rated temperature: 90 ° C
Certification: UL certification (E155274), CSA certification
Design options:
Observation window for wire inspection
Acceptable double lines (e.g. 2 × # 6 to 2 × # 14)
Supports B/C and G-K grade flexible wires
Suitable for UL certified conduit (AWG # 1- # 8)
Regarding the manufacturer
Wenzhou Kangshuai Electronics Co., Ltd., headquartered in Yueqing City, Zhejiang Province, is a trusted supplier of wiring terminals and connectors in China's electrical manufacturing hub. With over ten years of research and development experience and profound manufacturing expertise, we specialize in the design and production of mechanical connectors, terminal blocks, busbars, wire clamps, and grounding components.
ISO9001 certified quality management system
Product lines that comply with UL and SGS standards
Advanced CNC machining and testing equipment
Reliable export capability, exported to Europe, America, Southeast Asia and other regions
Flexible customization: We support OEM/ODM services based on your samples or drawings
Full lifecycle service: sample confirmation → mass production → after-sales support and replacement guarantee
